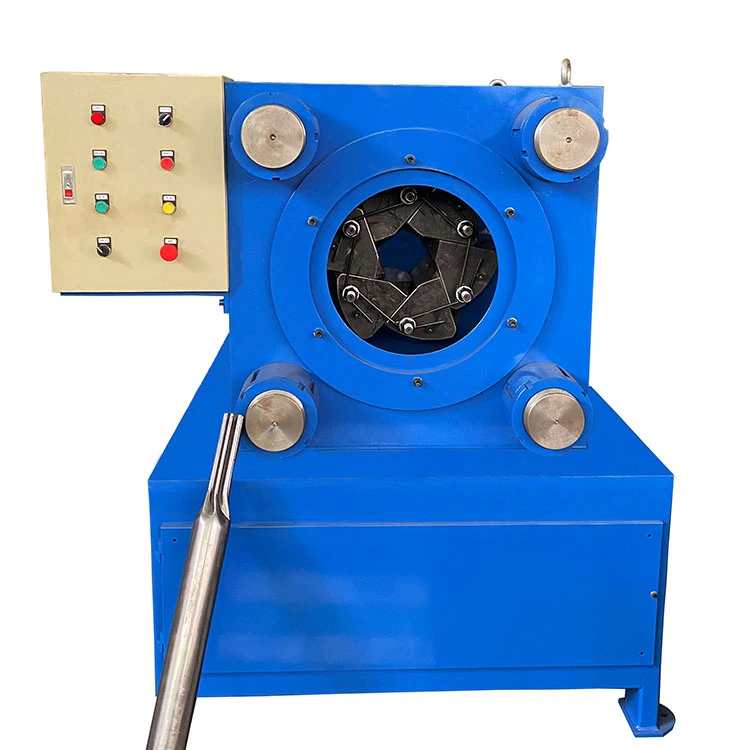

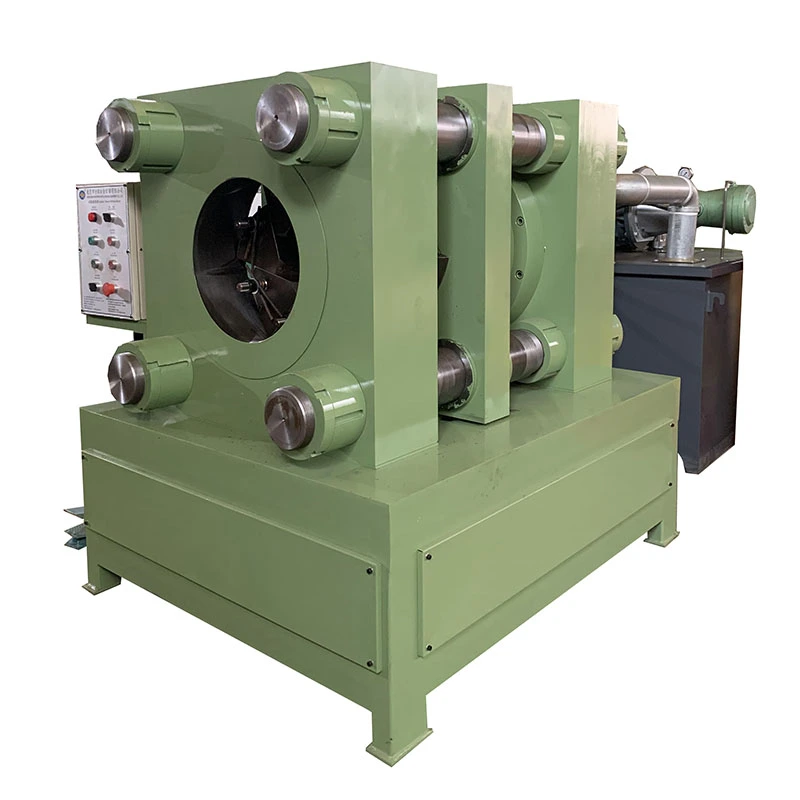

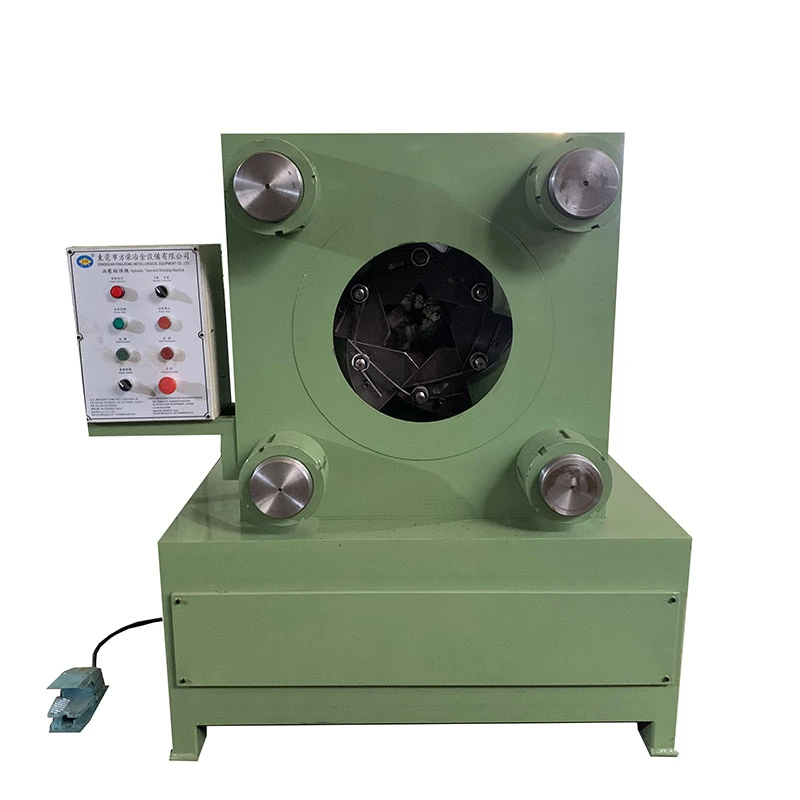

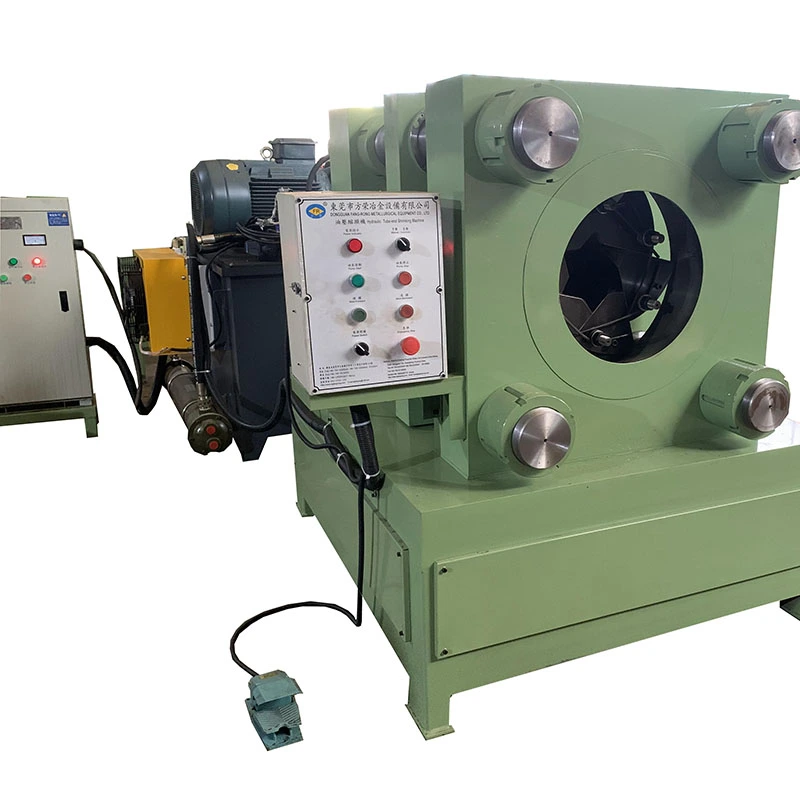

The Carbon Steel Hydraulic Six Dies Pointing Machine is a heavy-duty hydraulic tube end reducing machine specially designed for carbon steel tubes. It reduces the tube diameter at one end to create a pointed section, allowing the tube to pass smoothly through drawing dies during the cold drawing process.
Compared with conventional two-die or four-die machines, the six-die design distributes forming pressure more evenly, producing superior concentricity, improved dimensional accuracy, and better surface quality.

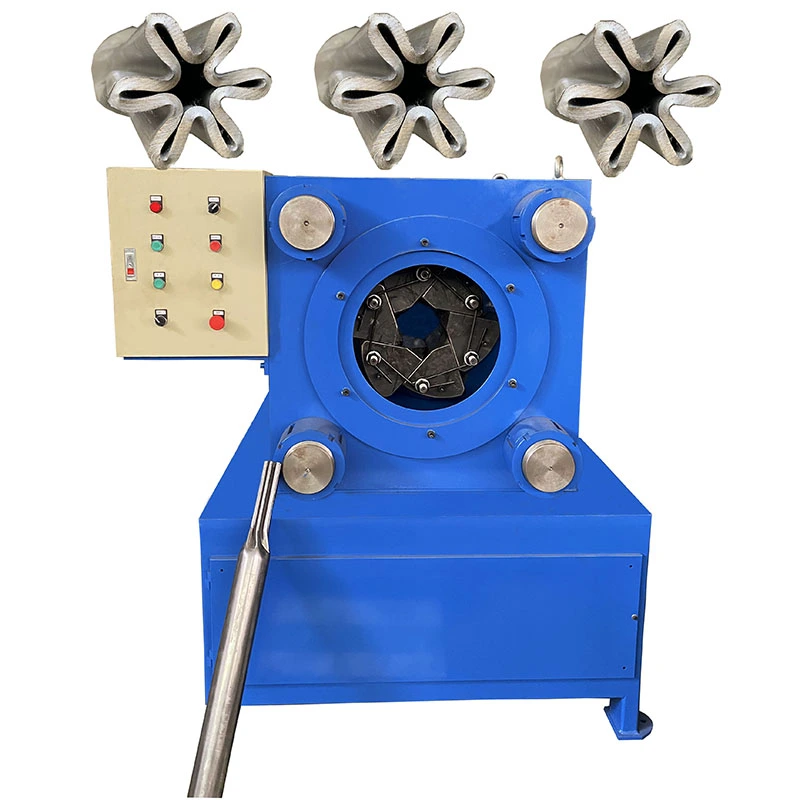

The Carbon Steel Hydraulic Six Dies Pointing Machine uses six hydraulically synchronized dies arranged evenly around the tube circumference. During operation, all six dies move toward the center simultaneously, compressing the tube uniformly from every direction. This balanced forming process minimizes deformation while producing a smooth and accurately reduced tube end in a single hydraulic stroke.
The Carbon Steel Hydraulic Six Dies Pointing Machine effectively addresses common challenges in carbon steel tube pointing operations, including:
- Eliminates uneven or eccentric pointed ends.
- Prevents excessive deformation caused by unbalanced forming force.
- Improves tube concentricity for smoother drawing operations.
- Reduces cracking and material damage during pointing.
- Minimizes material waste and secondary processing.
- Handles thick-wall and high-strength carbon steel tubes efficiently.
- Increases production speed through one-cycle hydraulic forming.
- Improves overall drawing line productivity and product consistency.
- Six-Dies Synchronous Hydraulic Forming
Six hydraulic dies move simultaneously, providing perfectly balanced radial pressure for superior pointing accuracy.
- Excellent Concentricity
Uniform compression from six directions ensures highly concentric tube ends and stable drawing performance.
- One-Stroke Pointing Process
Completes tube end reducing in a single hydraulic cycle, maximizing production efficiency.
- Heavy-Duty Hydraulic Power
Designed for carbon steel tubes requiring high forming force, including thick-wall materials.
- High Surface Quality
Precision dies create smooth, burr-free pointed ends with minimal surface damage.
- Wide Tube Size Compatibility
Suitable for various tube diameters and wall thicknesses through quick die replacement.
- Robust Machine Construction
Heavy-duty welded frame ensures long-term stability and reliable continuous operation.
- High Repeatability
Hydraulic synchronization guarantees consistent pointing quality across every production batch.
- Easy Operation
User-friendly hydraulic controls simplify setup and reduce operator workload.
- Low Maintenance Cost
Premium hydraulic components and durable dies provide long service life with minimal maintenance requirements.
This series offers three models --- FR-40, FR-80, and FR-150 --- to suit various pipe pointing needs. The FR-40 handles a pointing range of Φ6-40mm with wall thickness 0.5-1.8mm, featuring a Φ160×Φ100mm cylinder, 5.5kW pump power, dimensions of 1200×600×900mm, and weighs 500kg. The FR-80 covers Φ20-80mm, wall thickness 0.5-3.0mm, with a Φ250×Φ160mm cylinder, 7.5kW pump, and 800kg weight. The FR-150, our heavy-duty model, handles Φ30-150mm with wall thickness up to 5.0mm, an inner cylinder diameter of 480mm, 30kW pump power, and weighs 5000kg. Reliable, durable, and built for diverse industrial pointing applications.
| Parameters of Hydraulic 6 Dies Pointing Machine | |||
| Model | FR-40 Type | FR-80 Type | FR-150 Type |
| Pointing Range | φ6-40mm | φ20-80mm | φ30-150mm |
| Wall Thickness | 0.5-1.8mm | 0.5-3.0mm | 0.5-5.0mm |
| Cylinder Diameter | φ160*φ100mm | φ250*φ160mm | Inner Diameter Ф480mm |
| Pump Power | 5.5kW-4 | 7.5kW | 30kW |
| Dimensions | 1200*600*900mm | 1200*800*1300mm | 1800*1500*1500mm |
| Weight | 500 kg | 800 kg | 5000 kg |
Custom specifications can be provided as needed. The table above is for reference only; actual parameters may vary by material type
The Carbon Steel Hydraulic Six Dies Pointing Machine is widely used in carbon steel tube manufacturing and cold drawing production lines.
- Carbon steel tube manufacturing
- Cold drawing production lines
- Structural steel tube processing
- Mechanical tubing production
- Automotive component manufacturing
- Oil & gas steel tube processing
- Construction and infrastructure steel tubes
- Hydraulic cylinder tube production
- Industrial machinery manufacturing
- Metal tube processing factories
Fangrong was established in 1998. We have more than 26 years of experience in the design and manufacture of straightening machines, cold drawing equipment, and related metallurgical machinery. We operate two factories: Dongguan Fangrong Metallurgical Equipment Co., Ltd. and Yangjiang Fangrong Machinery Co., Ltd.
Our production covers a range of metal tube and bar processing equipment. Products are used in over 60 industries and have been supplied to more than 10,000 customers. Equipment is exported to more than 60 countries and regions.
We maintain in-house testing capabilities for machine performance, straightness accuracy, operational stability, and material compatibility. The company holds ISO 9001 certification and relevant patents for equipment design.
Two Manufacturing Facilities
FangRong operates two state-of-the-art manufacturing facilities strategically located in Guangdong Province:
- Dongguan Fangrong Metallurgical Equipment Co., Ltd. -- Located in Dalang Town, Dongguan City, the company's headquarters and primary manufacturing base. This facility specializes in the production of precision cold drawing machines, straightening machines, and thread rolling equipment.
- Yangjiang Fangrong Machinery Co., Ltd. -- Located in Yangdong District, Yangjiang City, this facility expands our production capacity and enables faster delivery to customers.

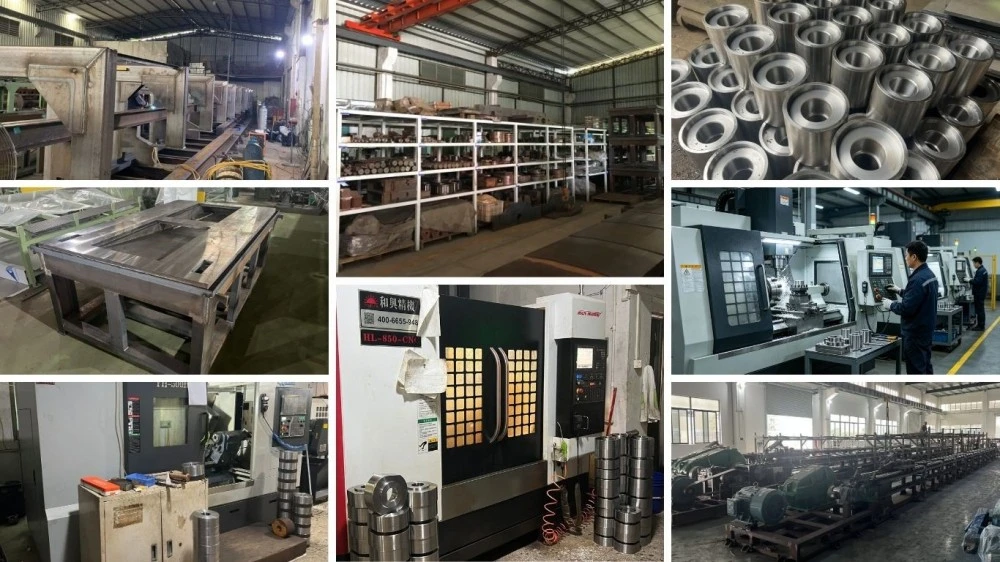

Based on customer requirements (model, pointing range, tonnage, etc.), the mechanical design and hydraulic system schematics are finalized and technically reviewed before production begins.
Steel plates, hydraulic cylinder barrels, hoses, electrical components, and die-grade tool steel are sourced and inspected for material grade, hardness, and dimensional accuracy.
Precisely cut the frame, cylinder, and tube sheet according to the drawings
The main body is welded using automatic/semi-automatic welding techniques to ensure the strength of the welds and structural stability
removes welding stress, prevents later deformation and extends the life of the fuselage
precisely CNC machining key parts like guide rails, cylinder holes, and mould mounting surfaces to ensure fitting accuracy
install the hydraulic cylinder, oil pump, valve block, and piping to build a six-cylinder synchronous hydraulic control system
integrated assembly of frame, hydraulic system, electrical control system and mould assembly
no-load trial, load draw test, checking synchronization accuracy, travel, and forming results
randomly check appearance dimensions, shrinked product dimensions, surface quality, sealing, etc. according to standards
Surface spray paint treatment to boost rust and corrosion resistance, extending its lifespan

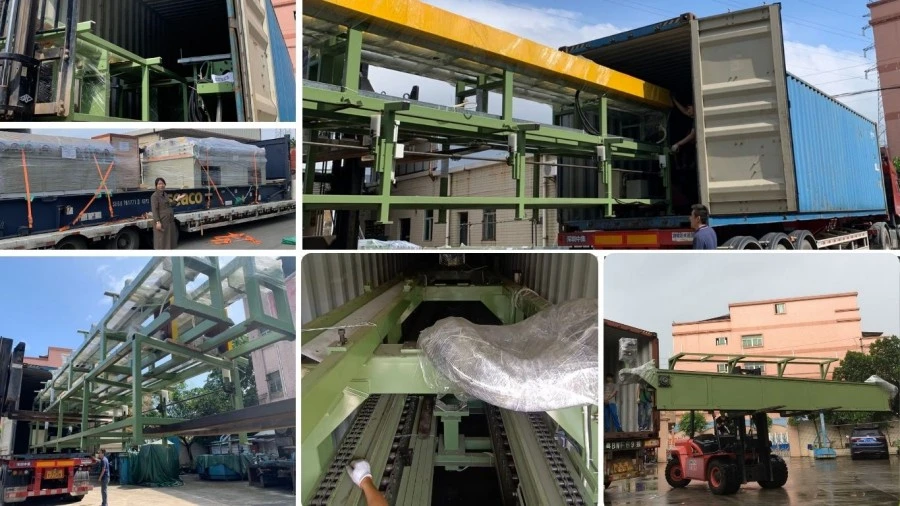

wooden crate/steel frame reinforced packaging, moisture-proof and shock-proof, with manual and certificate included
- ISO9001:2015 -- Quality management system for design, production, installation and service. Certificate No. UQ231211R1.
- CE Mark -- Compliance with Machinery Directive 2006/42/EC, including emergency stops, two‑hand controls and light curtains.
- SGS Inspection -- Independent verification of machine performance and safety features.
- National Patents -- 32 invention and 100+ utility model patents. Examples: 2013207829011 (chain tensioning device), 2008300532117 (multi‑strand die holder), ZL2015 2 0842922.7 (quick‑change mandrel system).
1. What materials can Carbon Steel Hydraulic Six Dies Pointing Machine process?
It is primarily designed for carbon steel tubes and can also process other steel materials depending on the application and tooling.
2. What tube sizes can the Carbon Steel Hydraulic Six Dies Pointing Machine handle?
The working range depends on the selected model. Please provide your tube diameter, wall thickness, and material specifications for a suitable recommendation.
3. Can the Carbon Steel Hydraulic Six Dies Pointing Machine process thick-wall carbon steel tubes?
Yes. The six-die hydraulic design delivers high forming force, making it ideal for thick-wall and high-strength carbon steel tubes.
4. Is one pointing cycle enough?
Yes. The machine completes the pointing process in a single hydraulic stroke, eliminating the need for secondary forming.
5. How long does it take to change dies?
The modular die system allows fast die replacement, minimizing production downtime.
6. Can the Carbon Steel Hydraulic Six Dies Pointing Machine be customized?
Yes. FangRong Machinery can customize the machine according to your tube size, material, production capacity, and factory layout.
7. What information should I provide before purchasing?
Please provide:
* Tube material
* Tube outside diameter (OD)
* Wall thickness
* Tube length
* Required pointed-end dimensions
* Production capacity per hour
This information helps us recommend the most suitable machine configuration.
8. What warranty and after-sales service do you provide?
We provide a 12-month warranty and comprehensive technical support, including installation guidance, operation training, spare parts supply, and lifetime after-sales service.
