We offer a comprehensive range of precision metal processing equipment, including straightening, cold drawing, pointing, chamfering, cutting, thread rolling machines, and drawing dies, tailored for tube, bar, and wire materials across diverse industries.

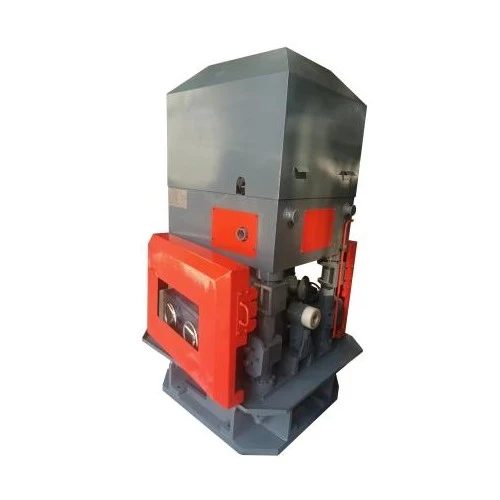

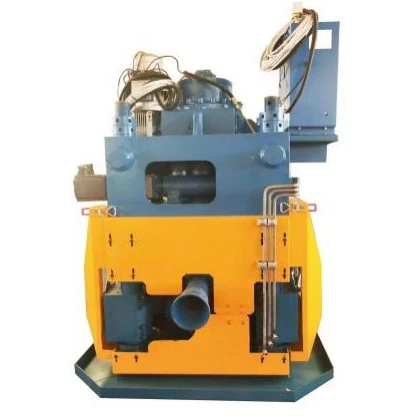

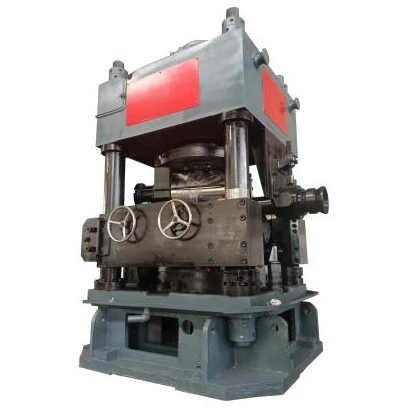

Why use a two-roller straightener for precision bars and peeled materials? FangRong Vertical Two Rollers Straightening Machines (FR-20 to FR-160) process solid bars φ5–φ160mm with surface roughness Ra≤0.8μm (peeled bars).
When you source this machine, you get roller diameters φ180–φ570mm, straightness ≤0.3mm/m, diameter tolerance ≤IT8, working speeds 2–30m/min.
Main motors from 7.5kW×2 up to 110kW×2, lifting motors 0.75–5.5kW. The two-roller design applies gentle, controlled pressure on two opposite sides, minimizing deformation of thin-walled or delicate materials.
How to handle different diameters without changing rollers? Our quick-change roller cassette system reduces downtime. Applications include bright steel bars, medical tubing, and precision shafts.
Combine with our Peeling Machine (pre-straightening) and Cutting Machine (post-straightening) for a complete precision bar line.
