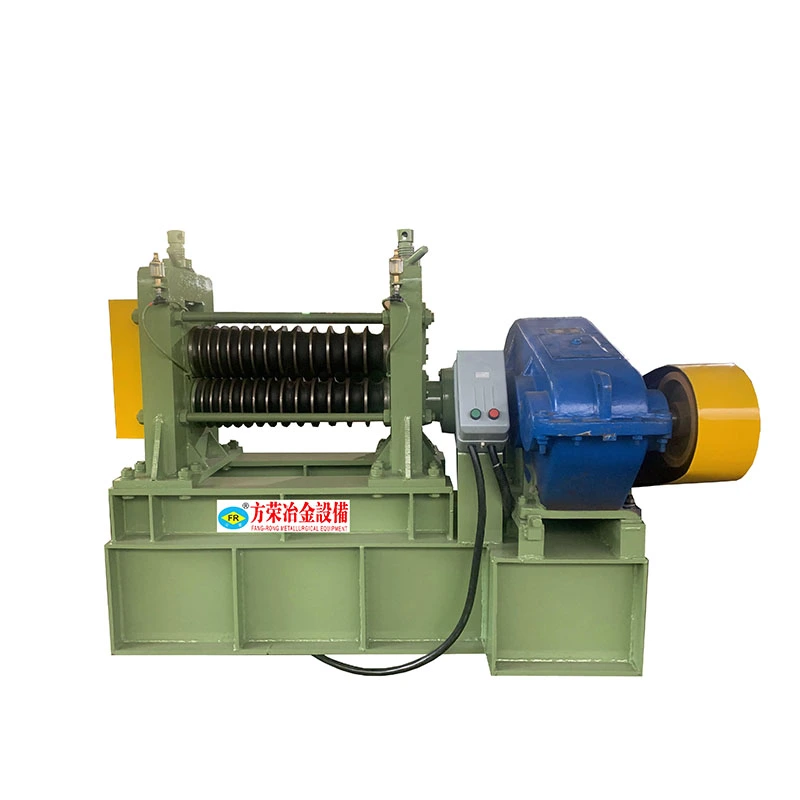

Before a stainless steel rod enters a cold drawing die, its leading end needs to be reduced to a size and shape that the die can accept and the drawing equipment can hold securely. The Stainless Steel Rod Pointing Machine performs this preparation by reducing the rod end through roller forming rather than removing the material by cutting or grinding.
This makes the pointing operation a separate, repeatable step before drawing. It can be used for different stainless steel rod diameters and installed as an independent machine or incorporated into a manual or automatic cold drawing line.

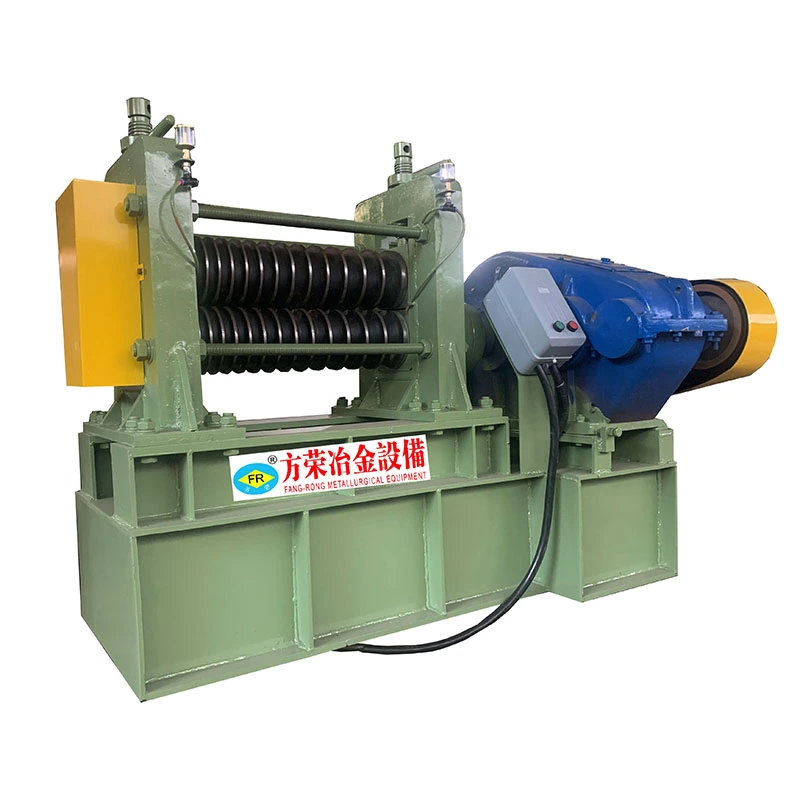

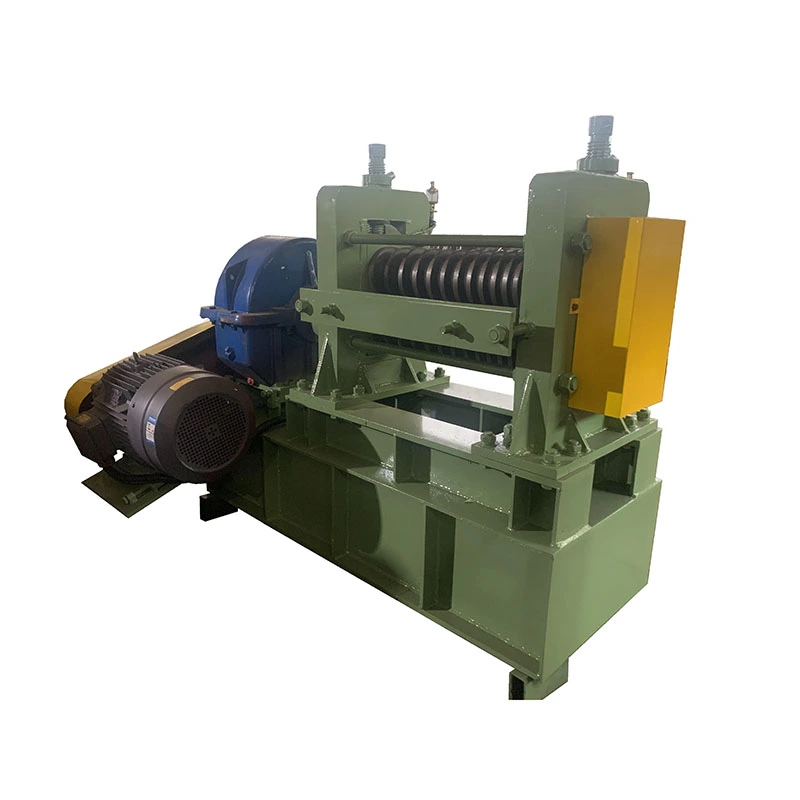

The pointing unit works with two hardened alloy steel rollers machined with grooves. A motor and gearbox drive the rollers while the rod is fed through the working area. As the rod moves between the rollers, successive groove profiles reduce the diameter of the leading section and form the pointed end.
The process relies on controlled deformation of the rod material. Since the end is formed by the rollers, there is no need to grind away a large amount of material before drawing. Different groove sizes can also be used for different rod diameters, allowing one machine to cover several production requirements.
Manual grinding, hammering or other end-preparation methods can become a bottleneck when stainless steel rods are processed in large quantities. Variations in the prepared end may also make die entry and gripping less consistent.
An automatic pointing machine addresses these issues at the preparation stage. The rod end is formed to a repeatable profile before it reaches the drawing die, helping operators reduce manual preparation time, material loss and interruptions between pointing and drawing operations.
The machine configuration is selected according to the rod diameter range and production requirements. Rather than using the same roller and drive arrangement across the entire series, Fangrong provides different roller diameters, motor powers and reducer models from FR-10 through FR-100.

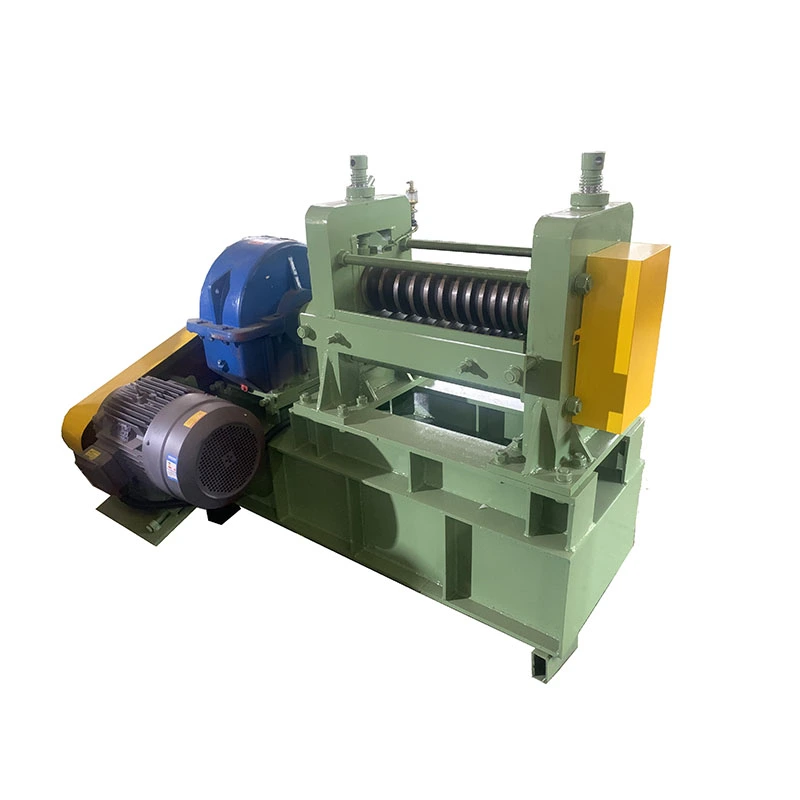

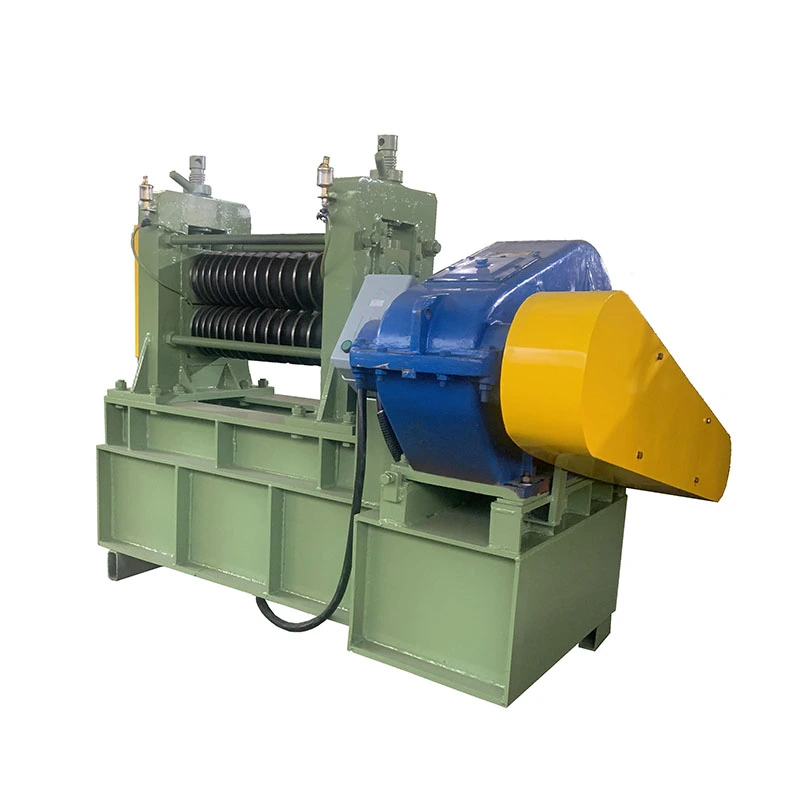

The welded steel frame provides the mechanical support required for roller forming, while heat-treated alloy steel rollers are designed for repeated contact with metal rods. The drive system combines an industrial motor with a reducer to deliver the torque required during pointing.
For plants processing several stainless steel rod sizes, the available groove configurations reduce the need to use a separate pointing machine for every diameter. Roller changes and machine adjustments can therefore be planned around the actual production range.
Fangrong's standard Stainless Steel Rod Pointing Machine series covers pointing diameters from Ø2 mm to Ø100 mm. The smaller FR-10 and FR-15 models are intended for smaller rod sizes, while the FR-60, FR-70, FR-80 and FR-100 models provide the machine capacity required for larger-diameter rods.
Machine weight increases from 160 kg for FR-10 to 4 tons for FR-100, reflecting the different roller sizes and drive capacities used across the range. The specifications below can be used as a starting point when selecting a model. Final configuration should be confirmed according to the actual stainless steel grade, rod dimensions and production conditions.
| Model / Parameters | Pointing Range | Roller Diameter | Motor Power | Reducer Model | Dimensions | Weight | Center Height |
| FR-10 | φ2~10 | φ81 | 2.2kw | ZQ200 | 750×550×1100mm | 160kg | 870mm |
| FR-15 | φ3~16 | φ126 | 5.5kw | ZQ350 | 1100×700×1200mm | 550kg | 850mm |
| FR-20 | φ6~20 | φ126 | 7.5kw | ZQ350 | 1100×700×1200mm | 580kg | 850mm |
| FR-25 | φ10~25 | φ135 | 11kw | ZQ400 | 1170×700×1200mm | 600kg | 850mm |
| FR-30 | φ10~30 | φ156 | 11kw | ZQ400 | 1500×900×1300mm | 1.4 ton | 850mm |
| FR-40 | φ15~40 | φ168 | 15kw | ZQ500 | 1700×1450×1400mm | 1.7 ton | 850mm |
| FR-50 | φ15~50 | φ175 | 18.5kw | ZQ500 | 1820×1700×1450mm | 2ton | 850mm |
| FR-60 | φ30~60 | φ203 | 22kw | ZQ500 | 2000×2100×1550mm | 2.8 ton | 850mm |
| FR-70 | φ40~70 | φ224 | 30kw | ZQ650 | 2000×2100×1550mm | 3ton | 870mm |
| FR-80 | φ40~80 | φ224 | 37kw | ZQ750 | 2000×2100×1550mm | 3.5 ton | 890mm |
| FR-100 | φ50~100 | φ224 | 45kw | ZQ850 | 2000×2100×1550mm | 4ton | 910mm |
Custom specifications are available for different rod sizes and production conditions. The specifications above are for reference, and actual machine parameters may vary according to material type.
Stainless steel rod pointing is normally positioned at the front end of a drawing operation. For this reason, the machine is mainly used where stainless steel rods need repeated end preparation before further forming or processing.
Common applications include stainless steel rod manufacturing, cold drawing lines, stainless steel wire production, bright steel bar processing, fastener manufacturing, welding rod production, spring material processing, automotive component manufacturing and metal processing service centers.
Fangrong was established in 1998 and has more than 26 years of experience in the design and manufacture of straightening machines, cold drawing equipment and related metallurgical machinery. The company operates two manufacturing facilities in Guangdong Province.
Dongguan Fangrong Metallurgical Equipment Co., Ltd. is located in Dalang Town, Dongguan City and serves as the headquarters and primary manufacturing base. Its production scope includes precision cold drawing machines, straightening machines and thread rolling equipment.
Yangjiang Fangrong Machinery Co., Ltd. is located in Yangdong District, Yangjiang City. The facility adds manufacturing capacity and supports production and delivery requirements for different projects.
Fangrong equipment has been supplied to more than 10,000 customers and exported to more than 60 countries and regions, with applications covering over 60 industries.
The production of a Stainless Steel Rod Pointing Machine starts with the required pointing range, machine configuration and working conditions. Engineering drawings are reviewed before fabrication so that the frame, roller arrangement, drive system and other components match the selected model.
Steel sections and plates are cut and welded according to the approved drawings. After welding, the frame can undergo stress-relief treatment to reduce the influence of residual welding stress on machine stability.
Key mechanical components are machined to the required dimensions and fit. The pointing rollers use high-strength alloy steel and receive heat treatment to improve wear resistance during repeated forming operations.
The motor, reducer, roller assembly, frame and control components are installed as a complete mechanical system. Alignment and component fit are checked during assembly before the machine proceeds to testing.
Before shipment, the machine is checked for mechanical operation, roller rotation, drive performance, operating stability and overall assembly condition. Final inspection also covers dimensions, appearance and configuration against the production requirements.
After inspection, the machine is prepared for shipment according to its size and weight. Reinforced wooden crate or steel-frame packaging can be used, with moisture and impact protection arranged for overseas transportation.
Fangrong maintains ISO 9001:2015 quality management certification, certificate No. UQ231211R1. The company also provides CE-marked equipment complying with applicable machinery safety requirements, including emergency stops, two-hand controls and light curtains where configured.
SGS inspection services can be used for independent verification of machine performance and safety features. Fangrong also holds 32 invention patents and more than 100 utility model patents. Representative patents include 2013207829011 for a chain tensioning device, 2008300532117 for a multi-strand die holder and ZL2015 2 0842922.7 for a quick-change mandrel system.

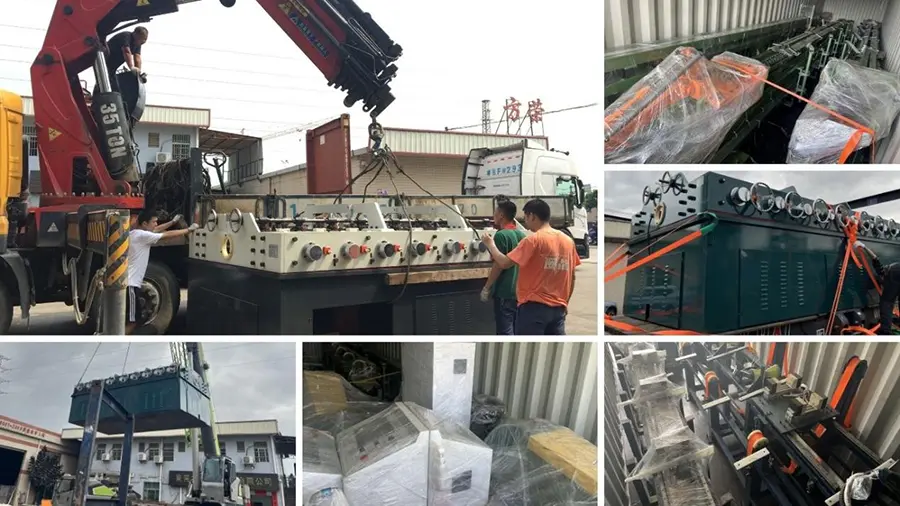

Because the equipment ranges from 160 kg to 4 tons across the standard models, packaging and loading arrangements are determined by the selected machine. Reinforced wooden crates or steel-frame packaging can be used to protect the equipment during handling and overseas transportation.
What diameter range can the standard machines handle?
The standard FR-10 to FR-100 series covers pointing ranges from Ø2 mm to Ø100 mm. The applicable range depends on the selected model.
Is this machine designed specifically for stainless steel rods?
This version is intended for stainless steel rods and bars. The actual roller and machine configuration should be selected according to the stainless steel grade, rod diameter and production conditions.
Why is pointing required before cold drawing?
The rod end must be reduced sufficiently for it to enter the drawing die and provide a section that can be gripped by the drawing equipment. Pointing prepares this section before the drawing operation.
Does pointing remove material from the rod?
The machine primarily forms the rod end through rollers. Unlike grinding or cutting, the process reduces and shapes the material without relying on extensive material removal.
Can different stainless steel rod diameters be processed?
Yes. The machine series covers different diameter ranges, and groove configurations allow the equipment to be used for multiple rod sizes within its applicable range.
Can the machine work with an automatic cold drawing line?
Yes. It can be installed as an individual pointing machine or integrated with feeding and automatic drawing equipment according to the production-line layout.
How should I select the correct model?
The main factors are the stainless steel grade, minimum and maximum rod diameter, rod length, required production volume and whether the machine will operate independently or as part of an automatic drawing line. Fangrong can recommend the model and roller configuration after reviewing these parameters.
How often do the pointing rollers need to be replaced?
There is no fixed replacement interval because roller service life depends on material hardness, rod diameter, production volume and operating conditions. Heat-treated alloy steel rollers are used for repeated forming applications.
Can the Stainless Steel Rod Pointing Machine be customized?
Yes. Custom configurations can be discussed according to rod size, material, production requirements, machine layout and integration requirements.
What technical information is needed for a quotation?
Please provide the stainless steel grade, rod diameter range, rod length, expected production capacity and the planned connection with the cold drawing line. These details help determine the suitable model and configuration.
What after-sales support is available?
Fangrong provides installation guidance, commissioning support, operator training and long-term technical assistance. Spare parts and after-sales support are also available after delivery.
What is the warranty period?
The machine is covered by a 12-month warranty for manufacturing defects. Long-term spare parts supply and after-sales technical support are also provided.
