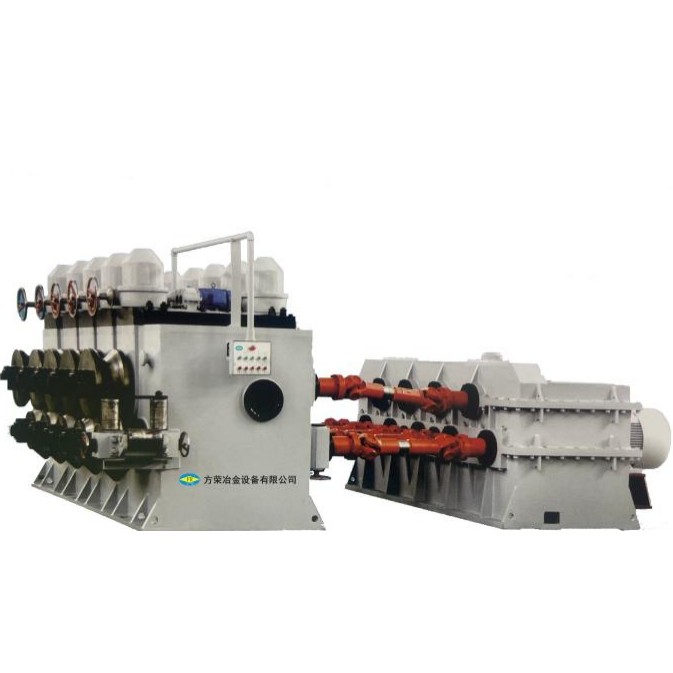

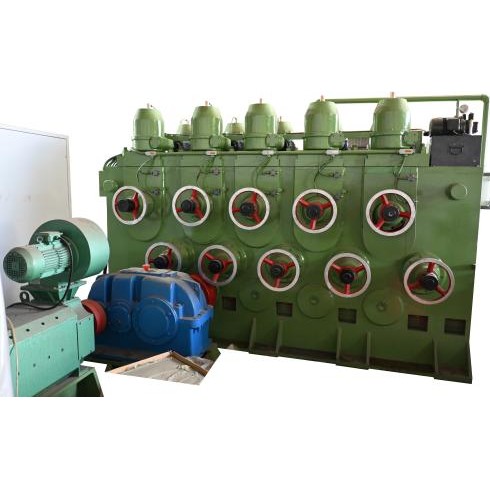

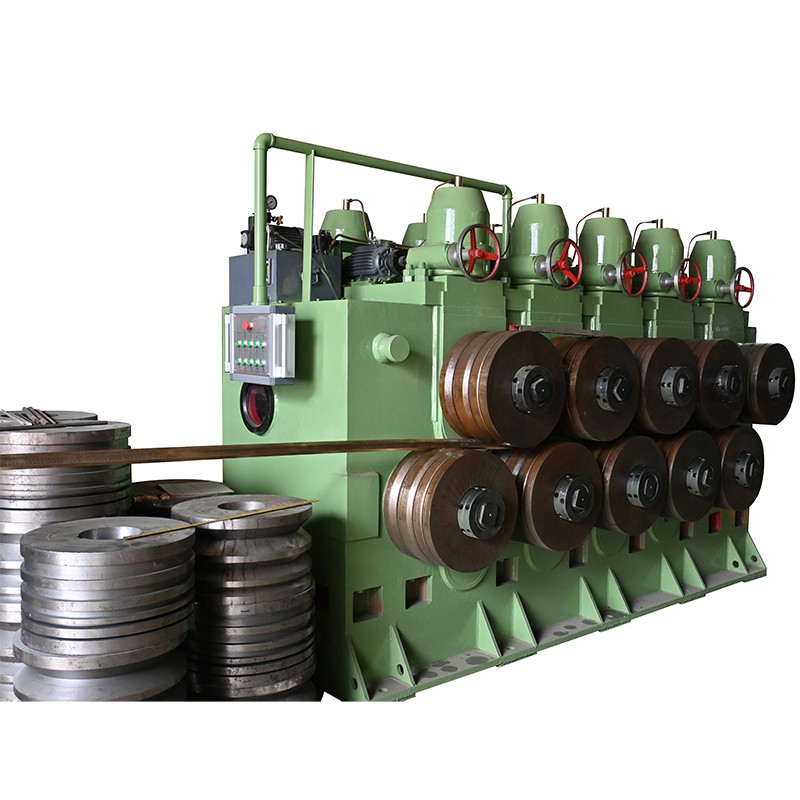

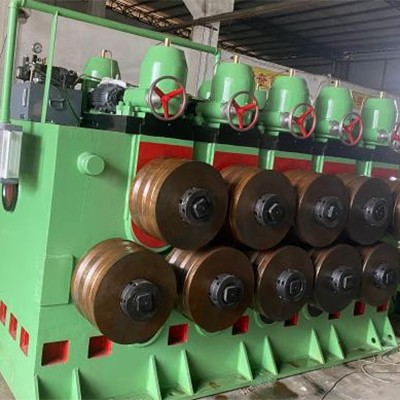

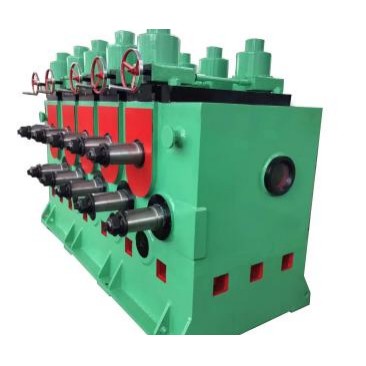

The Carbon Steel Irregular Straightening Machine is built for correcting bent, twisted, or uneven carbon steel profiles with non-round cross-sections. It is suitable for angle steel, channel steel, flat bars, square and hexagonal sections, and other custom profiles that require controlled straightening before machining, welding, assembly, or cutting.
Carbon steel profiles can retain significant deformation after rolling, forging, extrusion, heat treatment, or handling. Because different sections have different stiffness and neutral-axis positions, the straightening force cannot be selected by size alone. FangRong configures the roller arrangement and working conditions according to the actual profile, deformation pattern, and required straightness.
The workpiece enters a series of staggered straightening rollers. Instead of correcting the entire bend in one operation, the rollers apply controlled reverse deformation at successive points along the material. The combined effect gradually brings the profile back toward the required straight condition.
For irregular sections, the position and orientation of each roller are important. A channel, angle, flat bar, or asymmetric profile does not respond to force in the same way as a round bar. Roller spacing, contact position, pressure and alignment are therefore selected according to the section geometry and deformation.
The machine can be arranged for continuous production and can be matched with feeding, measuring, cutting, or other downstream equipment where required.
Residual Bending After Forming
Corrects longitudinal bending that remains after rolling, forging, heat treatment, or other forming operations.
Twisted and Multi-Directional Profiles
Provides correction from different directions for profiles where simple two-point bending cannot achieve the required result.
Preparation for Machining and Welding
Straighter incoming material can simplify fixture positioning, welding, cutting and subsequent machining.
Manual Straightening Bottlenecks
Replaces repeated flame, press, or manual correction with a controlled mechanical process for suitable production lines.
Variation Between Production Batches
Adjustable roller positions and working parameters allow the machine to be set according to different profile dimensions and deformation conditions.
Heavy-Duty Straightening Structure
The Carbon Steel Irregular Straightening Machine frame and transmission system are designed to withstand the forces required for carbon steel profile straightening and continuous industrial operation.
Multiple Roller Contact Points
Correction is distributed across a series of rollers rather than concentrated at a single loading point, allowing better control of the deformation path.
Adjustable Roller Geometry
Roller positions can be configured for different section shapes and sizes. This is particularly important for angle, channel, flat and asymmetric profiles.
Configuration for Different Steel Grades and Sections
Machine selection takes into account material strength, section dimensions, initial deformation and production requirements instead of relying on a universal setting.
Suitable for Continuous Processing
The straightening system can be incorporated into production lines where consistent material feeding and repeatable correction are required.
| Machine Series | FR Series |
| Roller Distance | 9–1450 mm |
| Roller Arrangement | 13+1 to 9+1 configurations |
| Main Motor Power | 3–225 kW |
| Applicable Materials | Carbon steel and applicable steel profiles |
| Profile Types | Round, square, flat, angle, channel, hexagonal and other sections, depending on configuration |
| Configuration | Selected according to profile geometry, dimensions, material condition and straightness requirements |
The specifications above cover the FR series range and are provided for reference. The final machine configuration depends on the steel grade, profile dimensions, cross-sectional geometry, initial deformation, required straightness tolerance and production capacity. For non-standard profiles, a technical drawing or physical sample is recommended before equipment selection.
Structural Steel Processing
Straightening of angle steel, channel steel, flat bars and other sections before fabrication, welding and structural assembly.
Steel Service Centers
Used to prepare cut-to-length or processed steel profiles when straightness is required before delivery or secondary fabrication.
Machinery Manufacturing
Corrects bars and profiles before machining to reduce problems caused by bent stock during fixturing and processing.
Forging and Heat-Treated Components
Applied where carbon steel components develop bending or distortion during forming or heat treatment and require mechanical correction.
Automotive and Component Production
Suitable for selected carbon steel bars, sections and components that require controlled straightness before machining or assembly.
Construction and Metal Fabrication
Supports production of straight carbon steel sections used for frames, supports, equipment structures and fabricated assemblies.
Fangrong was established in 1998 and has more than 26 years of experience in straightening machines, cold drawing equipment and related metallurgical machinery. The company operates two manufacturing facilities: Dongguan Fangrong Metallurgical Equipment Co., Ltd. and Yangjiang Fangrong Machinery Co., Ltd.
FangRong has supplied metal processing equipment to more than 10,000 customers in over 60 countries and regions. Its equipment range covers tube, bar and profile processing, with engineering, manufacturing, assembly and testing handled within the company.
For carbon steel irregular profiles, FangRong evaluates the actual section and deformation before determining the roller arrangement. This approach is useful when standard round-bar straightening equipment cannot provide the required correction.
Two Manufacturing Facilities
Dongguan Fangrong Metallurgical Equipment Co., Ltd. — Located in Dalang Town, Dongguan City, the main manufacturing base for straightening machines, cold drawing machines and thread rolling equipment.
Yangjiang Fangrong Machinery Co., Ltd. — Located in Yangdong District, Yangjiang City, supporting equipment manufacturing capacity and delivery.

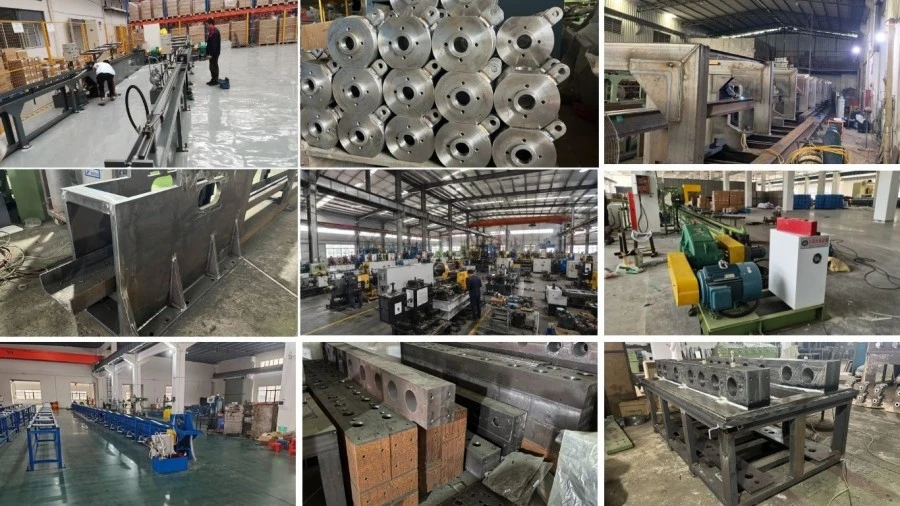

The manufacturing process covers engineering review, component production, roller machining, assembly and machine testing. For customized straightening equipment, the profile and production requirements are reviewed before the final machine configuration is released.
Material grade, profile dimensions, deformation, straightness requirements, production capacity and operating conditions are reviewed before design.
The roller arrangement and contact positions are determined according to the cross-section and required correction. Machine structure, drive capacity and control configuration are selected at the same stage.
Key structural and transmission components are precision machined before assembly. Straightening rollers are manufactured according to the required working geometry.
The frame, roller system, drive components and electrical system are assembled and checked. Roller alignment is verified before machine testing.
Testing may include machine running, roller alignment, straightening performance, electrical inspection and continuous operation checks before shipment.
FangRong provides installation guidance, operator training, technical support and a standard one-year warranty. Spare parts and troubleshooting assistance are available according to the project agreement.
ISO 9001:2015 — Quality management system certification, Certificate No. UQ231211R1.
CE Mark — Applicable machinery safety and conformity requirements for the relevant machine configuration.
SGS Inspection — Independent inspection services can be provided according to project requirements.
Patents — FangRong holds invention and utility model patents covering equipment components and machinery technologies. Examples include 2013207829011, 2008300532117 and ZL2015 2 0842922.7.

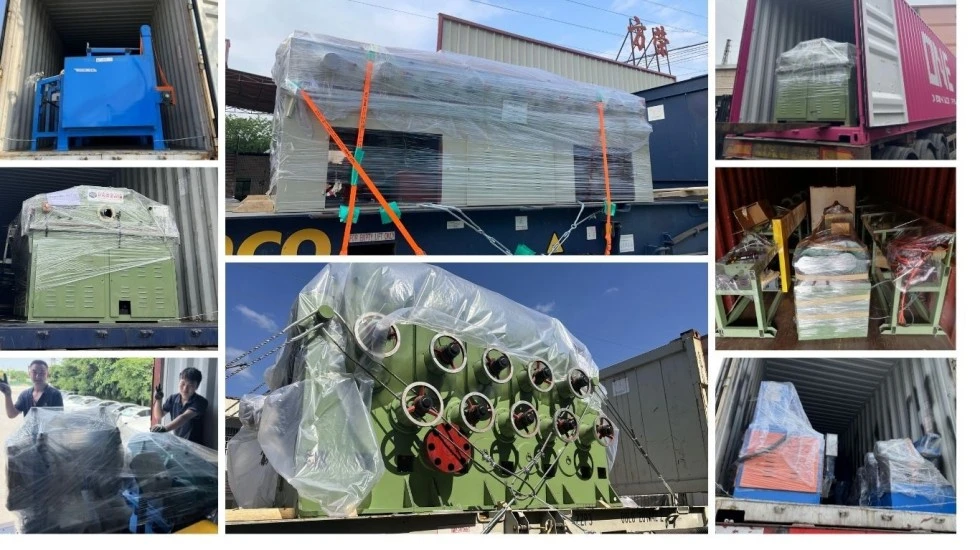

After final inspection, the machine is prepared for international transportation according to its dimensions, weight and shipping method. Packaging is selected to protect the frame, roller system, electrical components and other exposed parts during handling and transit. Auxiliary equipment, tooling and spare parts can be packed separately when required.
1. What information is needed to select a carbon steel irregular straightening machine?
The key information includes steel grade, profile drawing, cross-sectional dimensions, material length, initial bending or twisting, required straightness tolerance and production capacity. These parameters determine the required roller arrangement, working range and drive configuration.
2. Can the machine straighten angle steel, channel steel and other asymmetric sections?
Yes. The FR series can be configured for different non-round sections. Because asymmetric profiles have different stiffness and force distribution, the roller contact positions must be designed around the actual cross-section rather than using the same setup as a round bar.
3. How do you handle heavily bent or twisted carbon steel profiles?
The required correction depends on the amount and direction of deformation. For severe bending or twisting, the roller arrangement and correction sequence may need to be specifically configured. Sample testing or engineering evaluation is recommended before finalizing the machine.
4. Can one machine process several carbon steel profile sizes?
It can, provided the profiles fall within the machine's working range and the roller system can be adjusted or fitted with suitable tooling. When profile shapes differ substantially, interchangeable tooling or a dedicated configuration may be more practical.
5. What is the typical delivery time?
Standard equipment generally requires 30–60 days after order confirmation. Customized machines may require additional engineering, manufacturing and testing time. The exact lead time is confirmed according to the final technical configuration.
6. What are the warranty and after-sales arrangements?
The standard warranty is 12 months. FangRong provides installation guidance, operator training, remote technical support and spare-parts service. On-site services can be arranged according to the project requirements.
