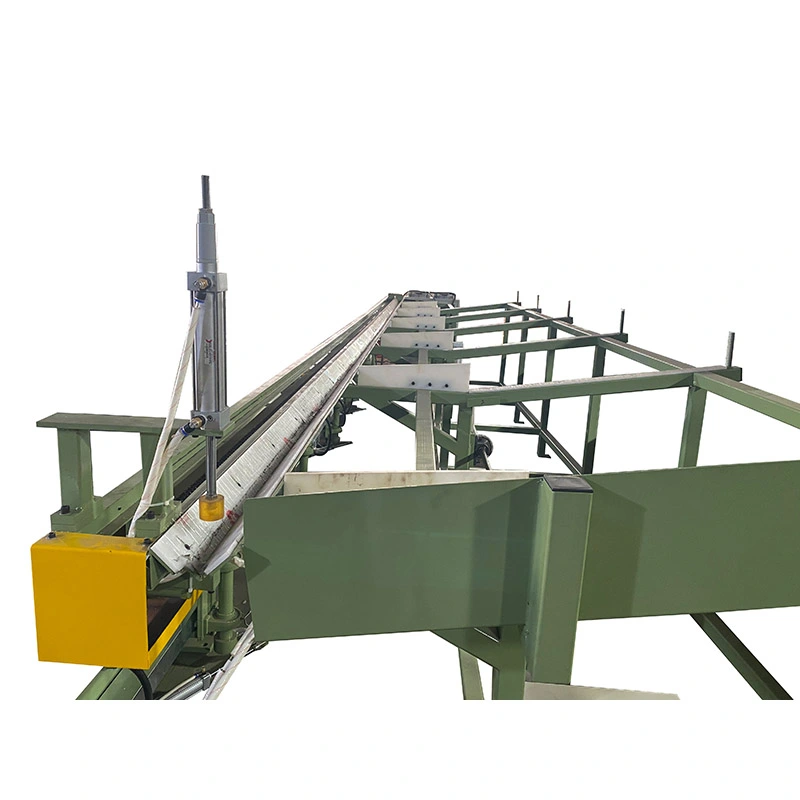

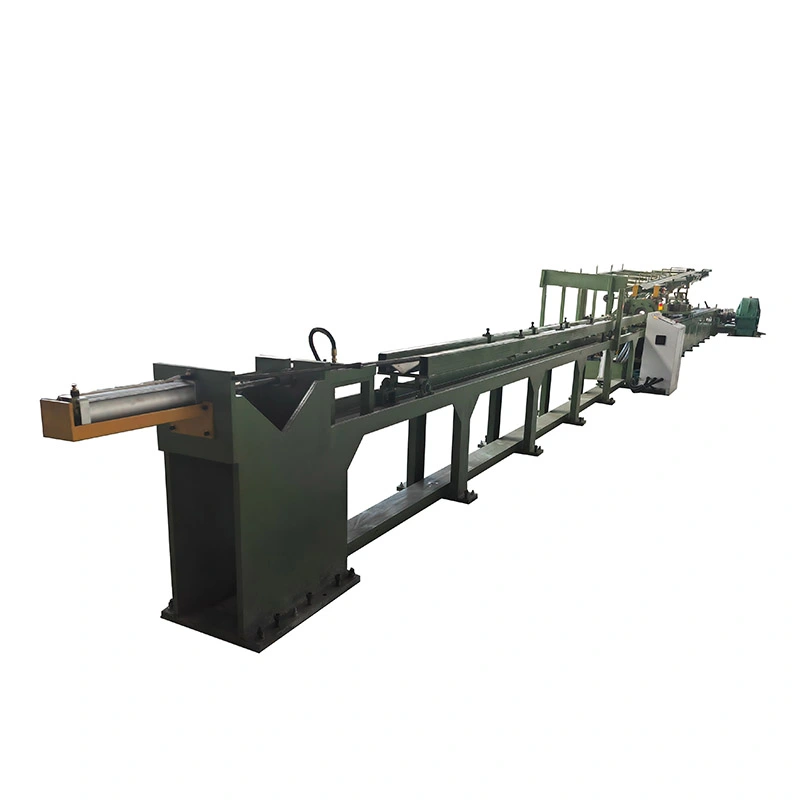

The Pipe Chain Cold Drawing Machine is a mechanical drawbench that uses a heavy‑duty chain drive to pull round tubes through a die at ambient temperature. Unlike hydraulic machines which rely on fluid pressure, chain‑driven systems offer higher drawing speeds (up to 28 m/min) and lower initial investment for small‑to‑medium diameter tubes (typically Ø6 -- Ø250 mm). They are the workhorse of tube drawing workshops, especially where high output and moderate reductions are required.
FangRong's FR‑series covers 10 standard models (FR‑16 through FR‑250), with drawing forces from 7 kN to 1000 kN. All models feature a mandrel (core rod) for tube drawing -- controlling internal diameter and wall thickness -- and can draw 1 to 5 tubes simultaneously in a single pass, dramatically boosting productivity per floor area.

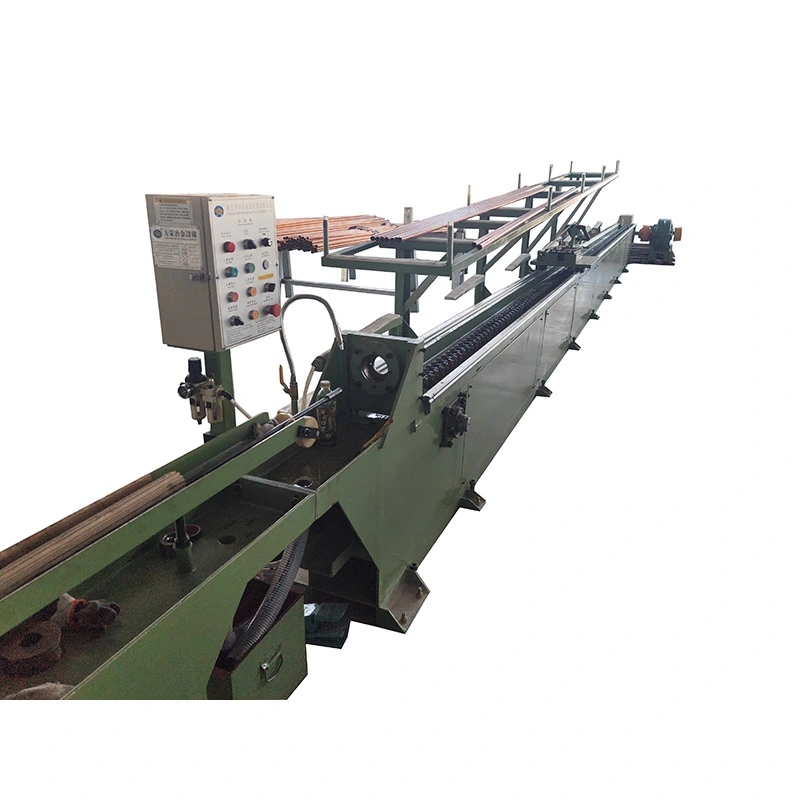

The process starts with pointed tubes loaded onto the feed rack. The leading ends are passed through the die and gripped by the drawing carriage, which is pulled by a chain driven by a reduction gearbox and main motor. A mandrel (stationary or floating) is inserted inside each tube to support the internal diameter during reduction. The carriage travels along precision‑ground guide rails, pulling the material through the die. After the full stroke, the chain reverses to return the carriage, while the drawn tubes are discharged.
Key engineering elements:

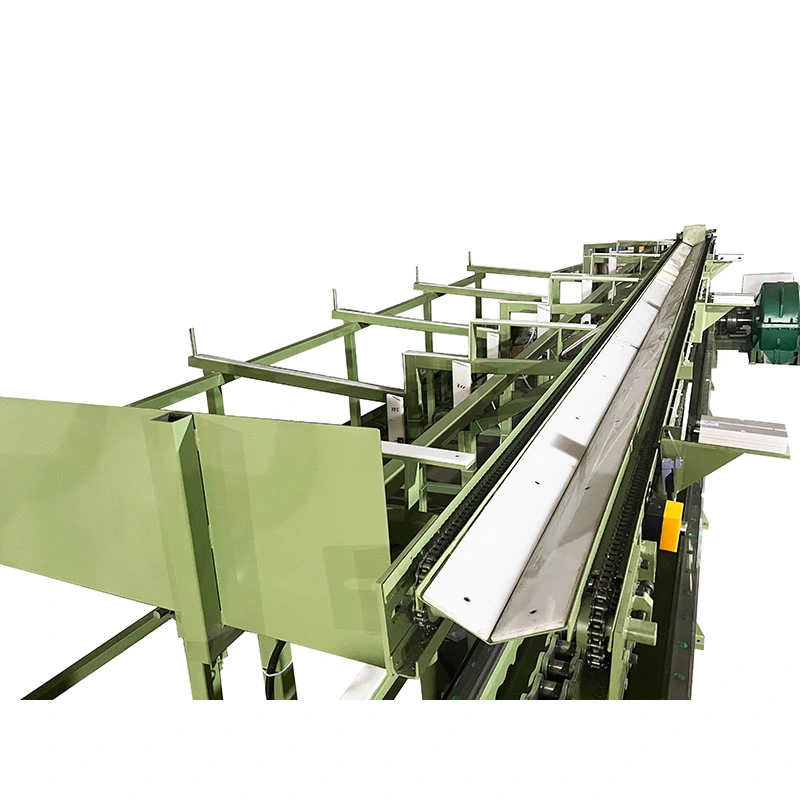

- Chain pitch and reduction gearbox are matched to each model to ensure smooth, shock‑free force transmission.
- The return motor quickly resets the carriage, minimising idle time.
- Optional auto‑feeder, auto‑cutting and auto‑receiving racks enable fully automated production lines.
Hot‑rolled or extruded tubes often have loose dimensional tolerances, rough surfaces and uneven wall thickness. Secondary processing (turning, grinding) adds cost and waste. Cold chain drawing solves these by:
- Improving dimensional accuracy to ±0.05 mm on OD and wall thickness.
- Producing bright, scale‑free surfaces -- ready for direct use.
- Enhancing mechanical properties via work hardening.
- Eliminating downstream machining for many applications, saving material and labour.
- Handling multiple tubes at once, increasing output per machine hour.
Since 1998, FangRong has designed and built over 1 500 chain drawbenches for customers in 70+ countries. Our machines are used in:
- 5 000+ steel mills for producing precision tubes,
- 2 100+ stainless steel processors,
- 1 800+ copper/brass tube manufacturers,
- 700+ aluminium extruders,
- 500+ specialty alloy producers.
Every model in the Pipe Chain Cold Drawing Machine has been refined through field feedback -- we know which gearbox, chain pitch and motor power deliver reliable performance for each diameter range.
1. High‑Speed Drawing up to 28 m/min
Chain drive allows faster speeds than hydraulic equivalents -- ideal for high‑volume production of small‑diameter tubes.
2. Multi‑Tube Operation (1‑5 pieces)
Draw up to five tubes simultaneously in one stroke. Significantly boosts throughput without increasing labour.
3. Precision Mandrel Control
Integrated internal mandrel ensures accurate wall thickness and internal diameter. Suitable for both sinking and plug drawing.
4. Rugged Chain & Gearbox System
Matched chain pitch (1.5" to 5" triple‑strand) and gearbox (ZQ250 to ZQ1450) provide smooth, maintenance‑friendly power transmission with long service life.
5. Quick Return Carriage
Separate return motor rapidly resets the carriage, reducing cycle time and increasing net production.
6. Modular Automation Options
Choose auto‑feeder, auto‑cut‑off and auto‑receiving racks for lights‑out operation.
7. Customisable Stroke and Length
Standard strokes up to 10 m, longer strokes available on request -- ideal for producing long tubes without welded joints.
8. Low Foundation Cost
The chain‑type machine has a compact footprint and does not require a massive concrete foundation -- only a level floor with anchor bolts.
The table below lists the standard FR‑series models. When choosing a model, consider:
- Max. drawing force -- must exceed the required force = (cross‑section reduction) × (material yield strength) × 1.1 (safety factor). For reference, a 50 kN machine can draw a Ø25 × 2 mm carbon steel tube (≈30% reduction) comfortably.
- Drawing speed -- higher speeds increase output but may require better lubrication and cooling for some materials.
- Stroke -- determines maximum product length; longer strokes reduce end‑loss.
- Chain pitch -- larger pitch = higher load capacity; triple chains are used for the heaviest models.
- Motor power -- ensure your site has adequate electrical supply.
All models include a mandrel system. Auto‑feeding, cutting and receiving are optional. Custom strokes and multi‑strand tooling (up to 5 pieces) are available.
| Model / Technology parameter | FR-16type drawing machine | FR-25 type drawing machine | FR-50 type drawing machine | FR-76 type drawing machine | FR-100 type drawing machine | FR-120 type drawing machine | FR-150 type drawing machine | FR-180 type drawing machine | FR-200 type drawing machine | FR-250 type drawing machine |
| Max drawing strength(kN) | 7 | 10 | 50 | 100 | 150 | 200 | 400 | 600 | 800 | 1000 |
| Max drawing travel(m) | 7 | 8 | 8 | 9 | 10 | 10 | 10 | 10 | 10 | 10 |
| Drawing speed(m/min) | 28 | 28 | 25 | 25 | 12 | 12 | 10 | 10 | 10 | 10 |
| Power for the pipe returning to first(kW) | 0.75 | 0.75 | 1.1 | 2.2 | 3 | 3 | 3 | 4 | 4 | 4 |
| Reducer model | ZQ250 | ZQ400 | ZQ500 | ZQ650 | ZQ850 | ZQ850 | ZQ1000 | ZQ1250 | ZQ850*2 | ZQ1450 |
| Chain pitch | 1.5" | 2" | 2.5" | 3" | 4" | 3"double | 4"double | 5"double | 4"triple | 5"triple |
| Main motor power(kW) | 4 | 7.5/11 | 22 | 30/37 | 45 | 55 | 75 | 98 | 55*2 | 132 |
| Dimensions(L*W*H)(mm) | 16000*110*1600 | 17000*1200*1600 | 17000*1300*1600 | 17500*1350*1600 | 18000*1400*1600 | 23000*2200*1800 | 23000*2300*1800 | 23000*2400*2000 | 23000*3000*2000 | 23000*2500*2000 |
All models include mandrel (core rod) for tube drawing. Optional: automatic feeder, cutter and receiving rack. Number of strands: 1‑5. Stroke can be customised.
- Shock absorber tubes, steering column tubes, drive shafts
- Exhaust pipe pre‑forms -- drawn to precise dimensions for subsequent bending
- Copper tubes for air‑conditioning and heat exchangers
- Aluminium micro‑channel tubes (multi‑port)
- Seamless steel tubes for cylinder barrels -- precise wall thickness for pressure rating
- Stainless steel hypotubes for surgical instruments and needles
- Precision tubes for fluid delivery systems
- Copper busbars (hollow sections) -- drawn to rectangular or round profiles
- Aluminium tubes for LED heatsinks and enclosures
- Heat exchanger tubes -- copper and alloy tubes for condensers
- Instrumentation tubes for control lines
26 Years of Chain Drawbench Experience
Founded in 1998, FangRong started as a joint venture with a Taiwanese chain‑drawing specialist. In 2013 we became wholly‑owned, but the engineering DNA remained -- we have built more chain‑type drawbenches than most competitors.
Two Manufacturing Facilities

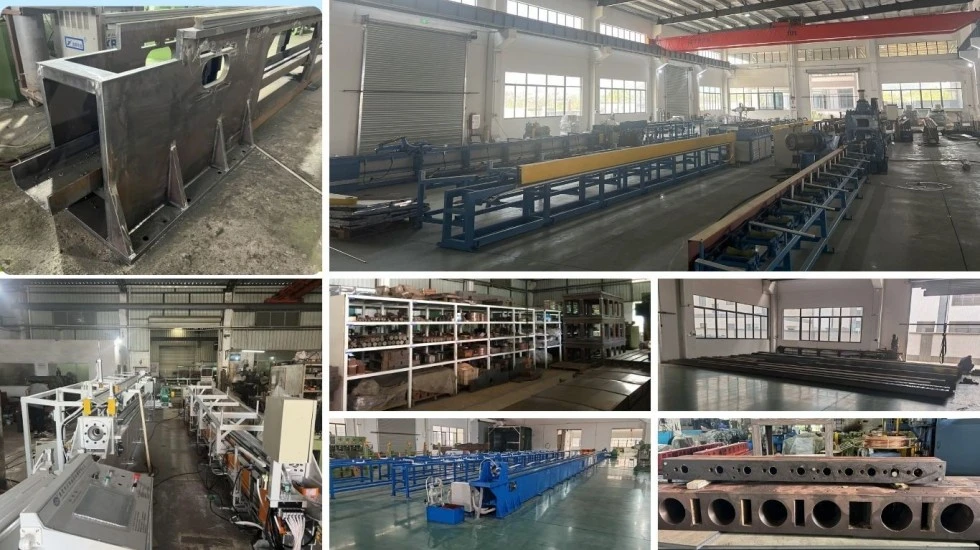

Dongguan and Yangjiang factories -- total annual capacity >650 machines. Average annual turnover 45 million RMB. Dual sites allow parallel production, reducing lead times.
Global Track Record
Exported to 70+ countries. Over 10 000 customers -- 5 000+ steel mills, 2 100+ stainless processors, 1 800+ copper tube makers, 700+ aluminium producers, 500+ specialty alloy users. This volume gives us unmatched feedback on real‑world performance across tube materials and sizes.
Rigorous Factory Testing
Every Pipe Chain Cold Drawing Machine runs idle for 30 min, then full‑load at rated force for 2 hours using actual tube samples (if provided). Oil temperature, vibration and noise are monitored; dimensional accuracy of drawn test pieces is verified with precision gauges.
Comprehensive After‑Sales
Installation supervision, commissioning, operator training, spare parts supply, and remote diagnostics.
Custom Engineering Support
Our team provides die design, pass schedule calculation, and automation integration tailored to your tube specifications. We offer free force calculations based on your material and target dimensions.
Dongguan Fangrong Metallurgical Equipment Co., Ltd. -- Headquarters and primary manufacturing base in Dalang Town, Dongguan City. Specializes in cold drawing machines, straightening machines, and thread rolling equipment.
Yangjiang Fangrong Machinery Co., Ltd. -- Secondary facility in Yangdong District, Yangjiang City, expanding production capacity and enabling faster delivery.
1. Order engineering -- Customised die holder, mandrel and automation layout.
2. Raw material inspection -- Chemical and hardness checks on steel plates, shafts and chains.
3. Machining -- Guide rails ground to straightness ≤0.3 mm/m.
4. Sub‑assembly -- Gearbox, chain sprockets and carriage are pre‑assembled and run‑in.
5. Final assembly -- All mechanical, electrical and pneumatic systems integrated.
6. PLC programming -- Customised cycle logic with HMI touchscreen.
7. Full‑load test -- Actual tube drawing with customer‑supplied samples (if available) to verify force, speed and accuracy.
8. Inspection -- Dimension check of drawn tubes, oil leak test, electrical safety check.
9. Packaging -- Export‑worthy wooden crates with moisture barrier.
Quality Control
We maintain ISO9001:2015 documentation for every step. Non‑conformance reports are tracked and corrective actions implemented. Our average customer audit score is 94.2% over the last 3 years.
- ISO9001:2015 -- Quality management system for design, production, installation and service. Certificate No. UQ231211R1.
- CE Mark -- Compliance with Machinery Directive 2006/42/EC, including emergency stops, two‑hand controls and light curtains.
- SGS Inspection -- Independent verification of machine performance and safety features.
- National Patents -- 32 invention and 100+ utility model patents. Examples: 2013207829011 (chain tensioning device), 2008300532117 (multi‑strand die holder), ZL2015 2 0842922.7 (quick‑change mandrel system).
Typically from Ø6 mm up to Ø250 mm for tubes. The exact maximum depends on material yield strength and reduction. Contact us with your specifications for a force calculation.
Yes. The Pipe Chain Cold Drawing Machine handles both thick and thin walls. For thin walls, proper mandrel support prevents wrinkling; our engineering team can recommend the best mandrel type (fixed or floating) for your application.
Up to 5 tubes, depending on die layout and carriage width. Multi‑tube tooling is available for all FR models, reducing energy consumption per tube.
For carbon steel, 25‑35% area reduction is typical. For stainless and alloys, 15‑25%. Multiple passes with intermediate annealing are possible.
Yes, a pointing machine is required to reduce the tube end for die entry. FangRong offers optional pointing units that can be integrated into the line.
Provide us with: material grade, starting OD/wall, target OD/wall, and desired output. We will calculate the required drawing force and recommend the most economical model. Generally, use 70‑80% of rated force for continuous operation to allow for material variations.
Machine complete with main motor, gearbox, chain, carriage, die holder, mandrel assembly, PLC control panel, HMI, and one set of standard tooling. Excludes dies for your specific size (quoted separately).
- Standard machines (FR‑16 to FR‑100): 30--60 days.
- Custom‑engineered machines (FR‑150 and above, or with special automation): 90--120 days depending on specifications. Dual‑factory operations enable parallel production for multiple orders, and we can often shorten lead time for urgent projects.
Standard terms: 30% deposit upon order confirmation, 70% prior to shipment (after factory acceptance test).
12 months from commissioning.
Yes. We keep a stock of common spare parts (chains, sprockets, seals, sensors) in our Dongguan warehouse. Remote troubleshooting via video call is free of charge.
Absolutely. We welcome customers to our Dongguan and Yangjiang plants. We can arrange a live demonstration with your own material if arranged in advance. Many customers have validated our quality through on‑site inspections.
Yes. We provide 3‑5 days of on‑site training for your operators and maintenance staff during commissioning. Training covers operation, die changing, routine maintenance and fault diagnosis.
We supply detailed foundation drawings and anchor bolt layouts. Our engineers will supervise the installation and commissioning. For an additional fee, we can send a full installation team.
Yes, all standard FR models carry CE certification, making them compliant for import into the EU and other regions that require it. We can also provide UKCA if needed.
